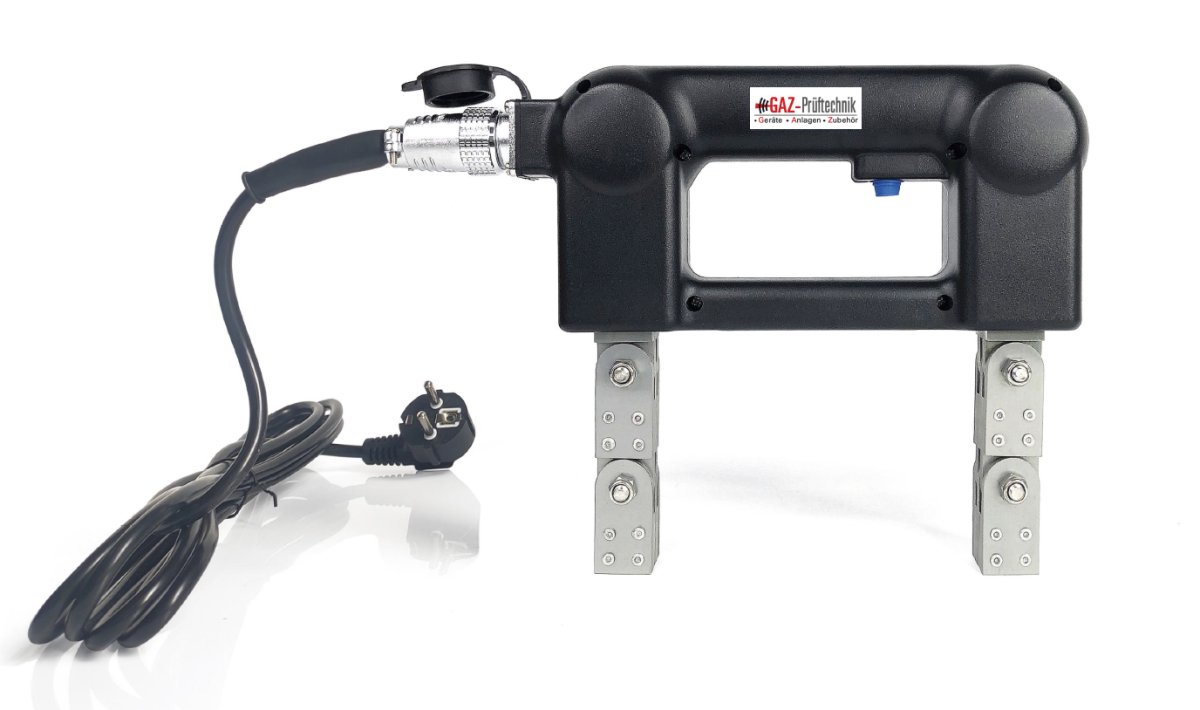

230V AC-Hand yoke 620

Light, handy AC handheld magnet with high performance.
Easier work due to small dimensions and weight.

With movable attachment poles, 230 V, 2 coils and detachable cable.
Weight: 2,4 kg
Dimensions: L230xD45xH130 mm
Lift: > 6 kg
555,00 €
excl. 19% VAT
  • Delivery time: 2 - 3 Workdays (Other countries)
Light, handy AC handheld magnet with high performance.
The AC Hand yoke magnet comes standard with movable attachment poles.
If you remove the joint piece you get straight poles.

Technical data:
Operating voltage / frequency:
220-230V AC / 50-60 Hz
Strength of current:
2.2 Ampere
Distance between poles:
with adjustable poles: 20-200 mm
> 6 kg
Magnetic field strength with adjustable poles:
Pole distance 190 mm: 32-32,5 A/cm
Pole distance 140 mm: 37-37,5 A/cm
Pole distance   95 mm: 57-57,5 A/cm

Work cycle: 5 seconds on - 5 seconds off
Operating temperature  -10° to 50° C

Magnetizing current:
Dimensions (without cabel):
L230xD45xH130-195 mm
Weight (without cabel):
incl. adjust. Poles: 2,4 kg
3 m safety cable with safety plug

Delivery content:
230 Hand yoke 620
adjustable poles
User manual
