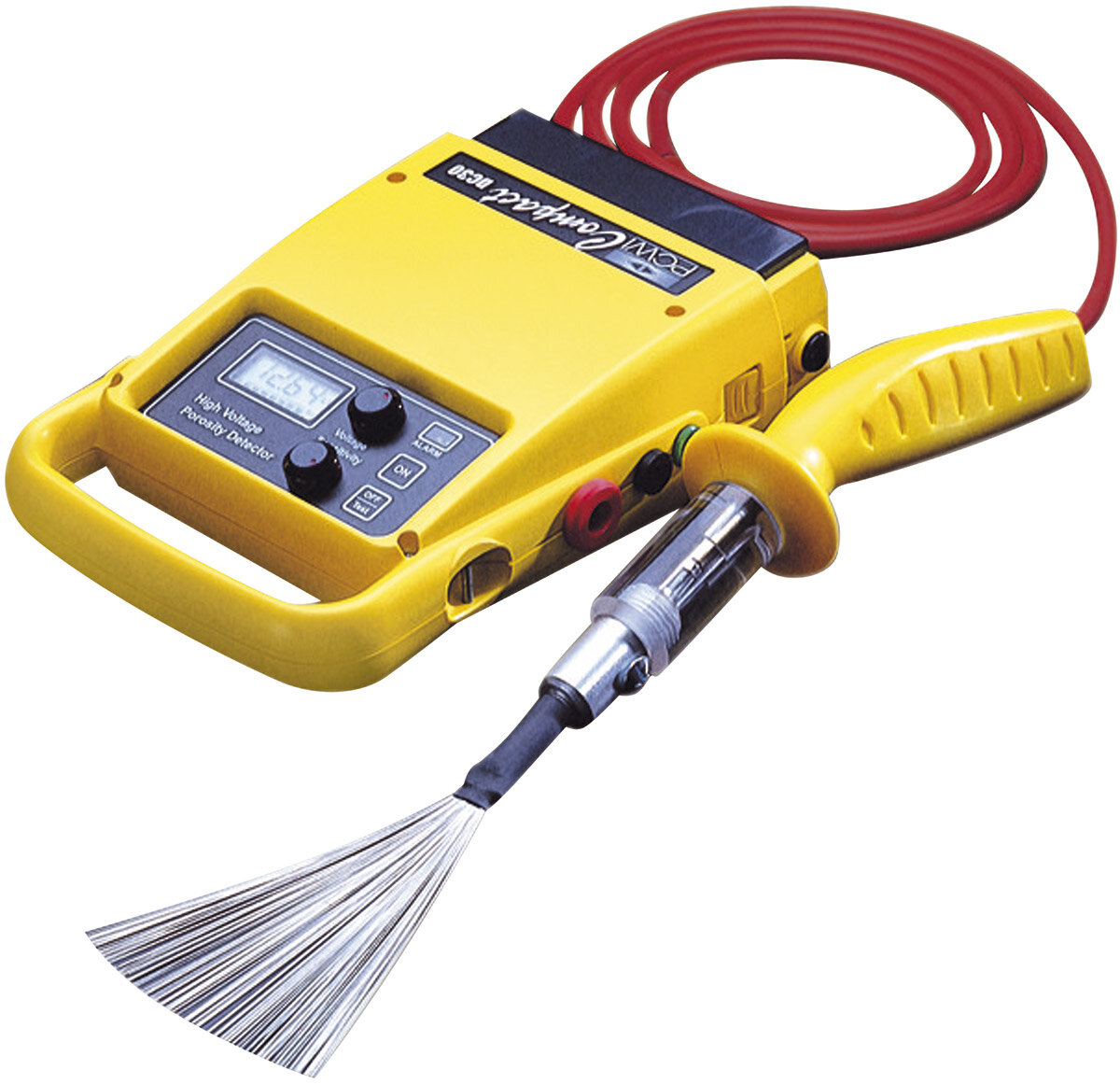

Pore Tester DC15 Compact 15KV Industry Kit

Advantages at a glance

Dry porosity detection
Battery operation
Very light
Continuous adjustment of test voltage from zero to maximum
Optical and acoustical alarm message
Battery charging possible during testing
Removable battery pack for separate charging
Overcharge protection
LCD display for test voltage and charge level indicator
Adjustable alarm sensitivity
2.295,00 €
excl. 19% VAT
  • Delivery time: 2 - 3 Workdays (Other countries)
The porosity test is performed with a low-energy high DC voltage.The test voltage can be from 0 to 15 kV. The test voltage is determined exclusively by the thickness of the layer to be tested. Therefore the film thickness should be measured before testing in order to prevent high voltage damage. A reference table which is part of the delivery content helps to determine the best test voltage which depends on the layer thicknesses.

The test procedure is performed by slowly pulling the brush with ca. 30 cm/s over the layer to be tested. A defect is indicated by sparkover and additionally by an audible and visual signal. The sensitivity is adjustable. For optimum test results different brushes are available like flat brushes and round brushes for internal and external testing on tubes.

Can be used in accordance with:
Australian Standard AS3894.1
ASTM G62, ASTM D5162, ASTM D4787, NACE RP0274, NACE SP0490, NACE SP0188, ANSI/AWWA C213, ANSI/AWWA C214, ISO 2746

Technical specifications
LCD 3 3/4 digits
Resolution: 10 volt
Test voltage: 0 - 15 kV
Akku: Operating time > 8 h
Weight: 2,2 kg
Package weight: 6 kg
Short circuit high voltage (max): 0,5 mA
Length of HV Silicone cable (unit - probe): 2 m
Length of the grounding wire: 7 m
Size: 260 mm x 160 mm x 70 mm

Scope of delivery Industrial version:
Device with battery
Charging clip with universal power supply
High voltage probe with 2m HV cable
Ground cable 7m
Flat brush 250 mm
Extension 450 mm
Pneumatic earphones
Carrying strap
Instruction manual
Test certificate
Carrying case
