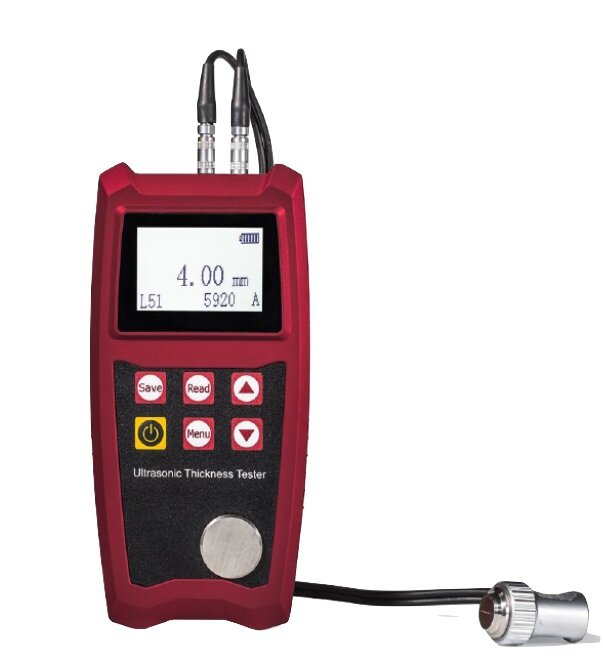

• Ultrasonic Thickness Gauge Uee930

    Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

    High quality and precision
    with 2 probes (Standard probe and Angle probe)

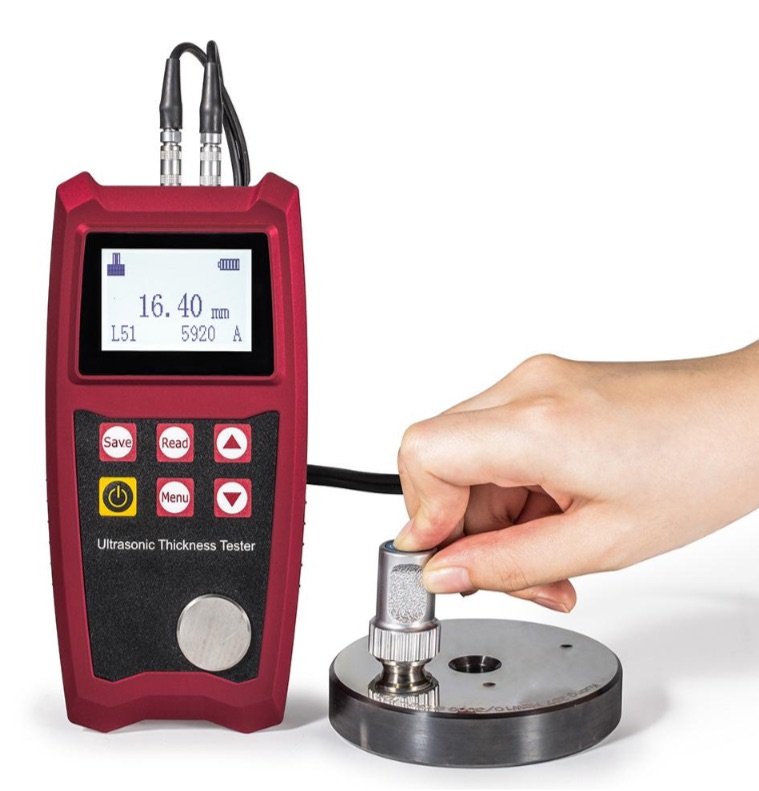

    Integrated with a 4mm calibration block.
    Two display units: mm and inch.
    With coupling state indication.
    Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.

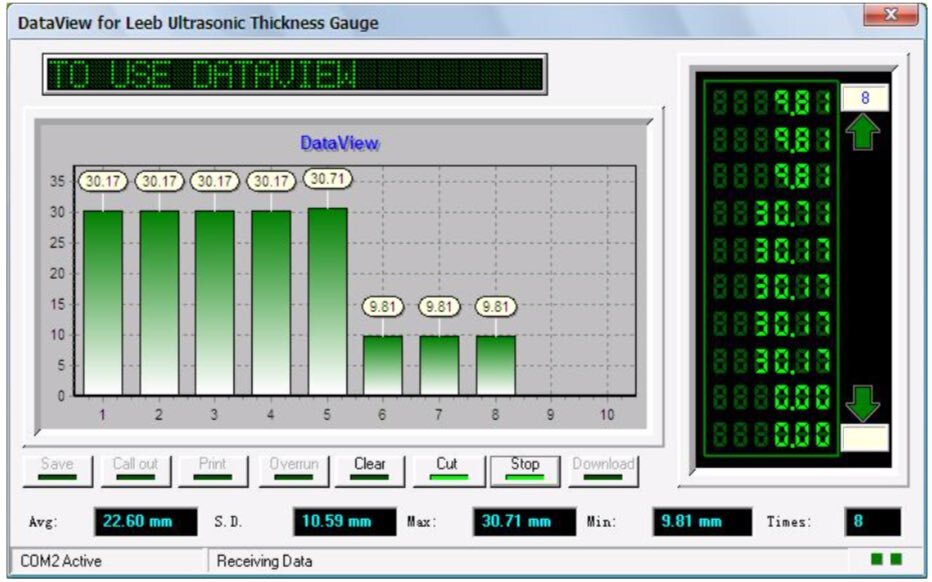

    Software for PC connection and data transmission, analysis.

    395,00 €
    excl. 19% VAT
    • Delivery time: 2 - 4 Workdays (Other countries)
    Description
    Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

    Technical Parameters

    Model
    Uee930

    Measuring range(mm)
    0.75~350 (depend on probes)

    Resolution(mm)
    0.01

    Accuracy(mm)
    ±(0.5%H+0.01) H refers to the thickness of testing piece

    Velocity range(m/s)
    1000~9999

    Velocity measurement

    Storage
    2000 Groups

    Shell
    Plastic

    Operating Temperature
    -10°C~60°C

    Dampness
    20%~90%

    Dimensions(mm)
    163*78*33mm

    Power supply
    2* AA

    Weight (g)
    200g

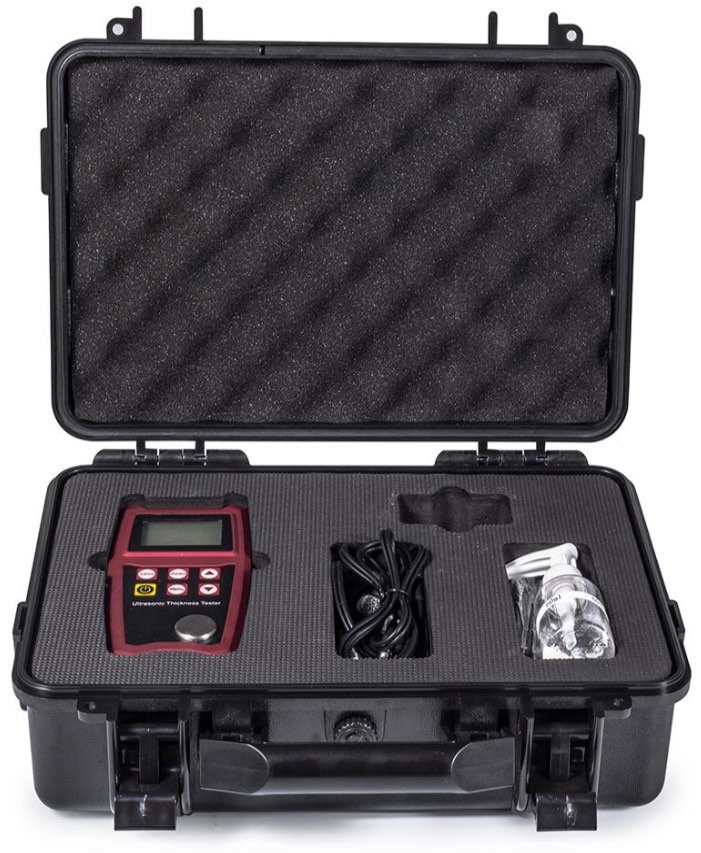

    Standard Configuration
    1 piece Main unit
    1 piece Standard probe(5P Ø10)
    1 piece Angle probe (90 °, 5P Ø10)
    1 piece Users’ Manual
    1 piece Certificate
    1 piece Coupling agent
    1 piece PC software
    2 pieces AA alkaline battery
    1 piece Warranty card
